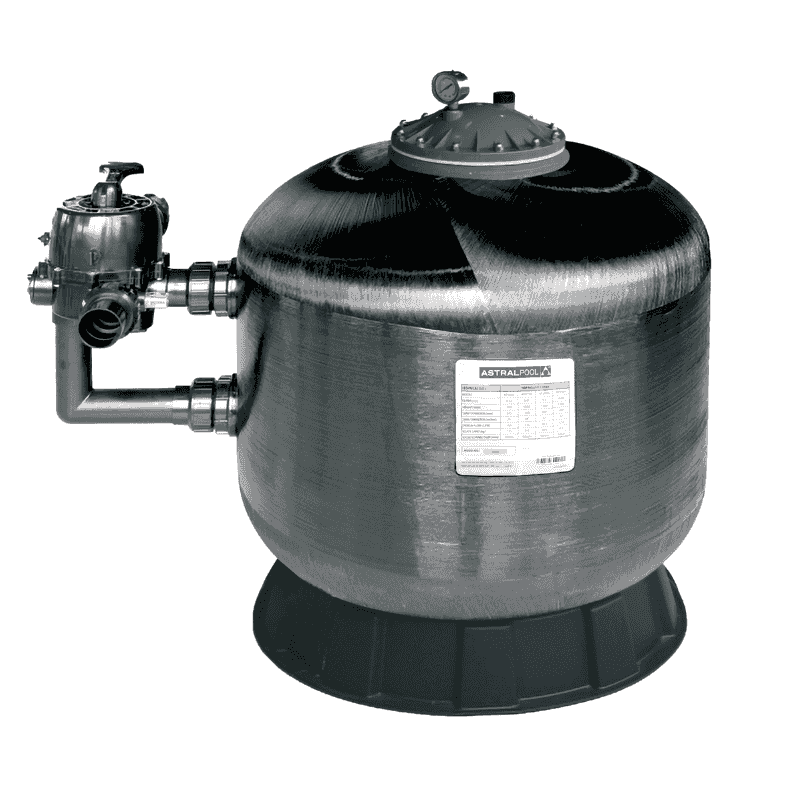

SIDE MOUNT FG FIBERGLASS MEDIA FILTER
- Sand filter, laminated with polyester / fibreglass resin.
- Equipped with collectors of 1″ diameter and diffuser of highly resistant PVC
- Fitted with pressure gauge, manual air and water purge valves
- Side mount 6 way multiport valve
ONE OF THE WORLD'S TOP-SELLING FILTERS
Aster laminated sand filters are known for their reliability, making them one of the top selling filters in the world, as well as for their collector arms, which feature a larger diameter for greater filtering surface. Fitted with an AstralPool multiport valve with 6+1 positions for filter, backwash, rinse, recirculating, waste and closed. A patented system is used for opening and closing the cover, thereby eliminating the use of traditional screws.
Spec
| Model No. | APS650 | APS700B | ||
|---|---|---|---|---|
| Pool Coverage | ||||
| Max Flow Rate (LPM) | 260 | 336 | ||
| Pool volume | 112m³ | 168m³ | ||
| Maximum working pressure | 2.5kPa | 2.5kPa | ||
| Equipment | ||||
| Height | 850mm | 890mm | ||
| Tank Code | 60025T | 60028T | ||
| Part Number | 60025 | 60028 | ||
| Tank Diameter (inches) | 25″ | 28″ | ||
| Tank Diameter (mm) | 635mm | 723mm | ||
| Filter (m²) | 0.32 | 0.41 | ||
| Glass Media Fine (kg / bags) | 75 / 5 | 88 / 8 | ||
| Glass Media Coarse (kg/bags) | 30 / 2 | 45 / 3 | ||
| Sand Media (kgs / bags) | 145 / 7 | 215 / 11 | ||
| Valve Connection (mm) | 40mm | 50mm | ||
| MPV Code | 76062 | 76063 |
