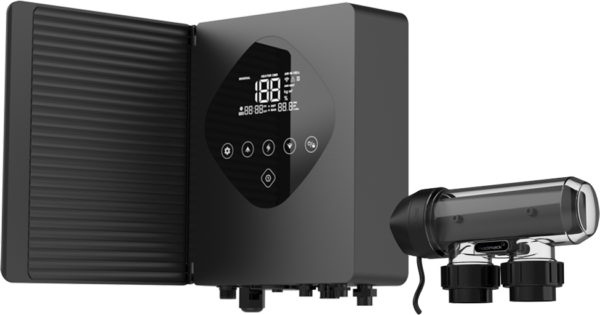

InverCHLOR Salt & Mineral Chlorinators

WiFi Enabled – Self-Cleaning

(Retrofits Astral E/VX/V/eQ/Halo)

Advanced, efficient, and convenient pool sanitization for both salt and mineral pools.It features a high-performance cell, intelligent control, and easy-to-use touch screen LCD.

BROCHURE



InverCHLOR Keeps Your Pool Pure

InverCHLOR revolutionises pool chlorination with exceptional performance in both salt and mineral pools. This intelligent system ensures accurate, convenient, and efficient pool sanitisation. With adjustable settings and real-time updates on water chemistry, it maintains optimal conditions throughout the varying Australian seasons.

A standout feature is its high-performance cell, guaranteeing over 10,000 hours of use. The intelligent control system minimises strain on the unit, extending cell life. InverCHLOR also boasts a UV-protected front cover and a touch screen LCD for easy configuration. All these features are packed into a compact, robust unit, making installation a breeze. Simplify pool maintenance with Madimack’s InverCHLOR salt and mineral chlorinator.

Visible Water Quality

Madimack-InverCHLOR-pool-size-chart

Features

Features:

  • Extended Cell Life: InverCHLOR’s intelligent control system prevents strain and extends cell life to over 10,000 hours.
  • Low TDS Compatibility: Efficiently produces chlorine with salt or mineral levels between 1200-6000 ppm.
  • Smart Alerts & Notifications: Notifies you when your pool needs salt or minerals, removing guesswork from maintenance.
  • Modular Cell Design: Simplifies installation for both new and existing pools, with optional pH control.
  • Controlled Performance & Inverter Tech: Adaptive power control optimizes energy use with advanced inverter technology.
  • Full Inverter Output: InverMAC technology enhances cell life, energy efficiency, and water quality.
  • One-Click Simplicity: App control for real-time water reports.
  • Synchronised Intelligence: Allows the heat pump to run outside filtration/chlorination times using the same circulation pump.

Retro-Fits:

  • Astral E series
  • Astral VX series
  • Astral V series
  • Astral eQ serials
  • Astral Halo series

Specifications

Model INVER CHLOR 10 INVER CHLOR 20 INVER CHLOR 30 INVER CHLOR 40
Chlorine g/hr 3000ppm 10 20 30 40
Chlorine g/hr 1200ppm 4 9 14 18
Cell amps (A) (3000ppm) 4 7 11 14
Cell amps (A) (1200ppm) 2.6 4.6 7 8.4
Cell voltage 12
Power supply (Vac) 100-240v (50/60hz)
Flow rate L/Min 80-400
IP Rating 65
Operating temp (C) -5 ~ 42
Water temp (C) 5 ~ 40
Control unit dimensions (mm) 245 x 200 x 80
Cell dimensions (mm) 327 x 117 x 150
Water connection (mm) 50/40mm

All measurements calculated at 25 degrees water temperature.
